Solar Home Power System 30KW (G) Economical Configuration | Day-Pro
5KW Solar Power System
More Details
Features and Benefits
-High efficiency: monocrystalline solar PV panels are adopted which are of higher efficiency than poly PV Panels.
-Gel battery is used and free maintenance
-Inverter is stable in pressure
-Safety alarming such as overcharging , over pressure is available
-Easy installation
|
Description of Solar Home Power System 30KW （Economical Configuration ） |
||||
|
No |
Component name |
Specification |
Qty |
Remarks |
|
1 |
Solar Panel |
450W |
28 |
mono solar PV panels, Daily Power generated 63 KWH , storage 48KWH.（consider 5H effective sunlight) |
|
2 |
Gel Battery |
12V 250Ah |
16 |
Gel Battery, Free Maintenance |
|
3 |
Inverter |
30KW |
1 |
CE certified, Strong in pressure stabilization |
|
4 |
Controller |
192V 100A |
1 |
CE certified, LCD display alarm against over charging |
|
5 |
Cables |
|
2 |
Solar PV Cable 2 pcs , each 100m |
|
6 |
Panel Bracket |
|
1 (set) |
covering Space 75m2 |
|
7 |
Combiner box |
|
1 |
|
|
|
||||
|
loading |
AC 2800W |
Induction cooker 2000W |
Micro oven 1800W |
Cutting Machine 3500W |
|
Duration |
22h |
31h |
35h |
18h |

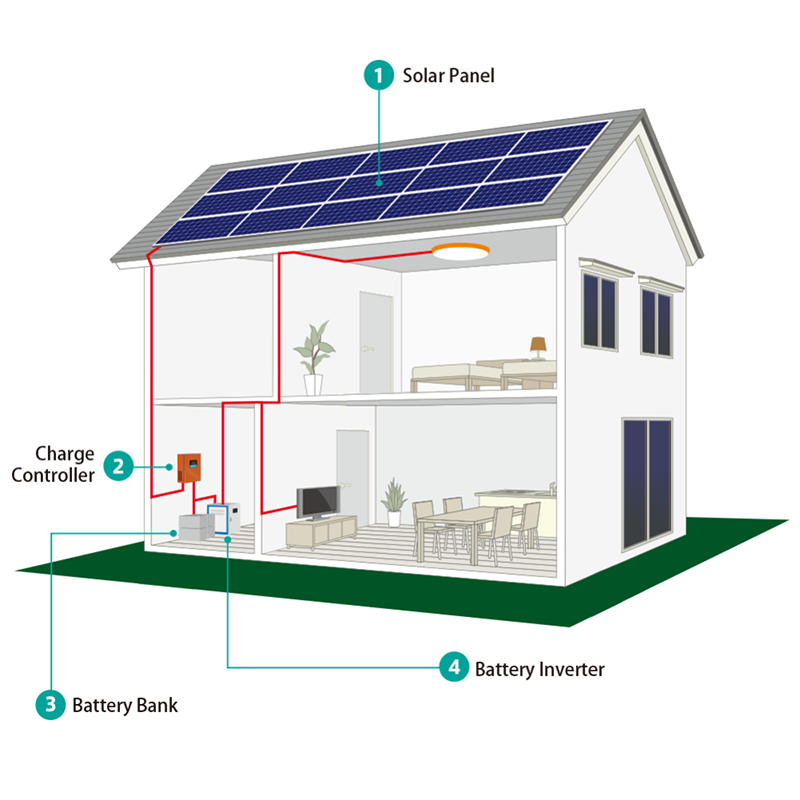

Working principle
Application
About Solar Panel
Our Factory
Certificate
Packing and Shipping
