Nitrogen Generator

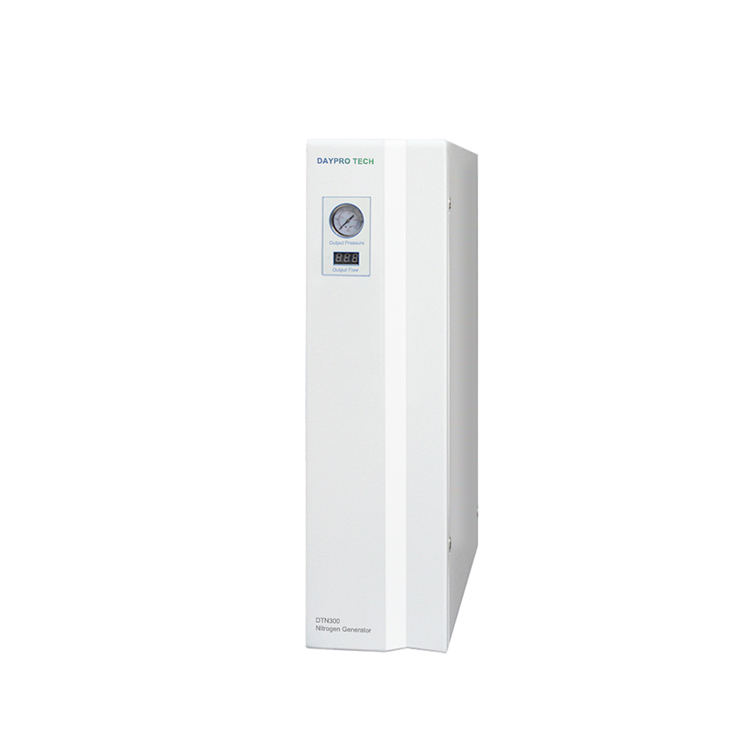

DTN300 Lab Machine Nitrogen Generator Unit Psa 2.2Kw

 Product Description

 Specification

Technical Parameter

Technical Parameter	DTN300	DTN600
Nitrogen Purity	99.999%-99.9999%	99.999%-99.9999%
Output Flow	0-300ml/min	0-600ml/min
Output Pressure	0-0.4Mpa	0-0.4Mpa
Pressure Fluctuation	< 0.003MPa	< 0.003MPa
Power Supply	220V±10%, 110V±10%,	220V±10%, 110V±10%,
Peak Power	525W	525W
Working Environment	Tempurture 0-45℃ ,relative humidity≤85%	Tempurture 0-45℃ ,relative humidity≤85%
Dimension	350×320×900(mm)	350×320×900(mm)
Net Weight	28kg	28kg

Features and Advantages

1.Intelligent control by single chip microcomputer, flexible, automatic activation at startup, automatic switching after
activation, easy to use.

2. Double tower PSA, optimized control algorithm, high nitrogen production efficiency.

3. Select high quality imported special nitrogen molecular sieve: large adsorption capacity, high compression performance, long service life.

4.Use unique filling technology: make the molecular sieve not easy to powder, effectively extend the life.

5. Adopt bipolar voltage stabilization to ensure the stability of nitrogen output pressure and realize the output of high-purity nitrogen at startup.

6. The exchange tower, gas storage tank and other key components are made of high-quality stainless steel materials, which are rugged and durable.

7. Built-in overpressure safety protection device, overload protection device, to ensure nothing goes wrong.

8. The system has built-in fault diagnosis mode, which automatically alarms when problems occur, making it easy to use and maintain.

9. The nitrogen generator directly produces high-purity dry nitrogen, suitable for strong polarity chromatographic columns and ECD detectors.

 Application

 Customer Feedback

 Company Profile

Established in 2013， Beijing Day-Pro Technology Co., Ltd.is a leading professional company in  Beijing where is full of scientific and technological talents that made our technical staff readily at hand.
Pursing high quality and excellent performance is our motto.
Our advantages are as the following:

We have very strong technical team of 150 staff.
We have our own factory to design and produce according to your requirements
We have strong team to manufacture and service.
We provide customized and complete solution
We focus on long-term business development, your business' success is our biggest success

Our mission:
Provide solutions for laboratory testing, scientific research, industrial process processing, etc.

Our values:
Innovation, Pragmatic, Integrity, Profession, Warmness, with which, we will be your reliable partner.

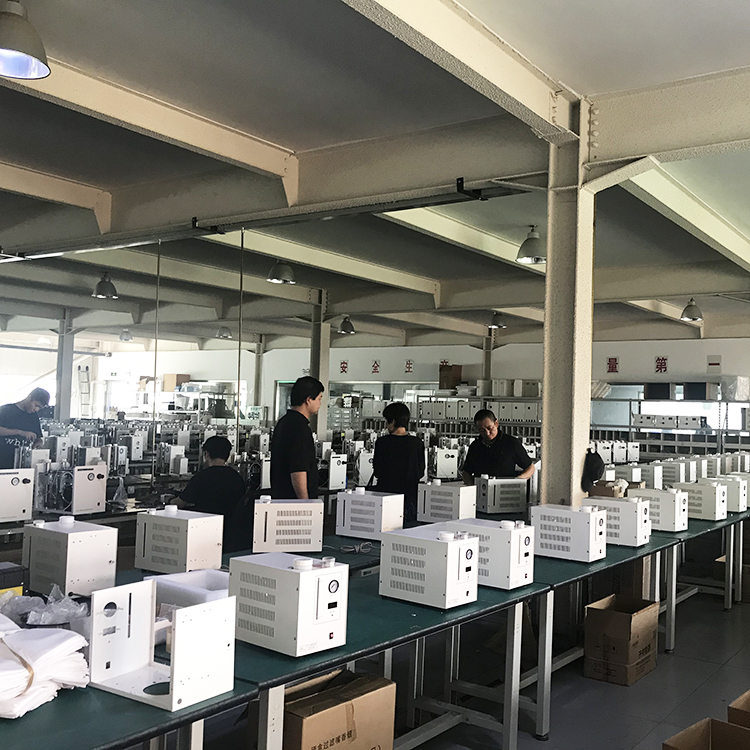

Welcome Vist our Factory

After Sale Service

 Certification

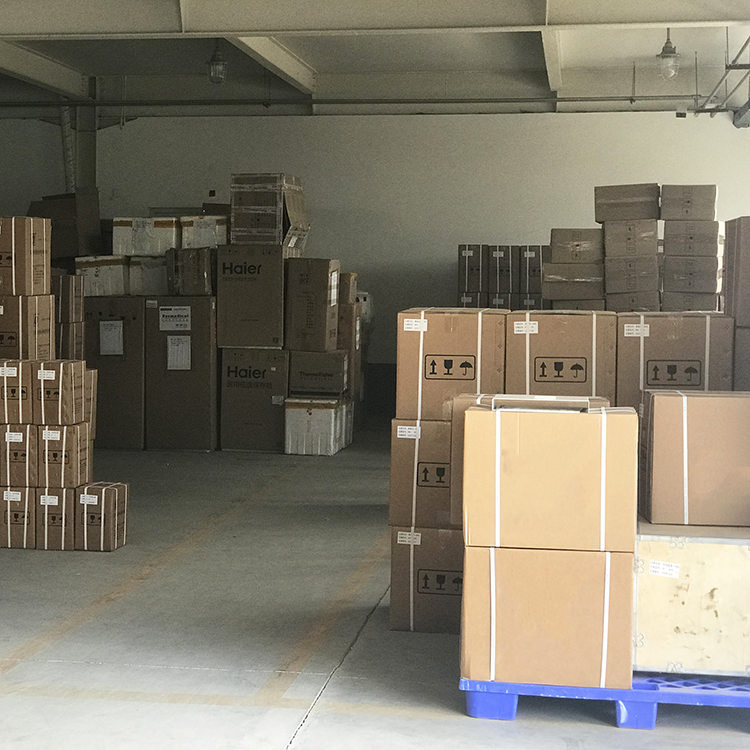

 Package
