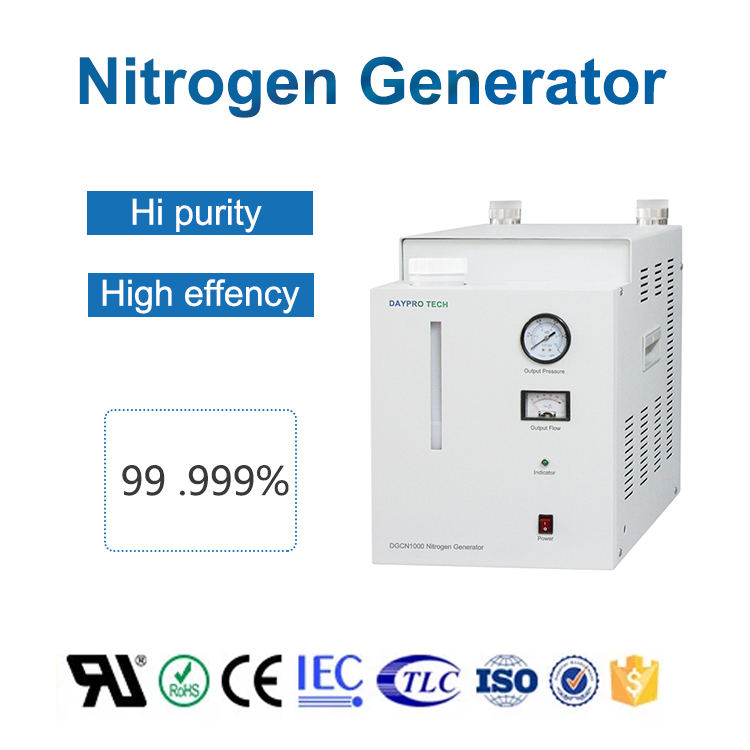

Nitrogen Generator

Nitrogen Gas Generator High Efficiency Liquid Compact  for Multiple GC

 Product Description

 Specification

Technical Parameter

Technical Paramater	DGCN1000
Nitrogen Purity	99.999%
Output Flow	0-1000ml/min
Output Pressure	0-0.4Mpa
Pressure Fluctuation	< 0.001MPa
Power Supply	220V±10%, 110V±10%,
Power Consumption	150W
Work invironment	1-40℃ Relative Humidity：<85%
Dimension	460×350×350mm
Net Weight	20kg

Features and Advantages

1. Automatic control: the instrument works automatically with constant pressure and current. The nitrogen flow can be adjusted automatically from 0 to 1000ml/min according to the dosage.

2. Advanced technology: The electrolytic cell adopts membrane
separation technology, and the catalytic layer USES PCAN carrier and precious metal catalyst, which makes the electrolytic cell with high catalytic efficiency, large gas production and high purity of nitrogen. The electrolytic cell has been aging for more than 100 hours with high voltage and large current, which makes the performance and working state of the cell more stable.

3. Low nitrogen-producing humidity: Ultra-high molecular weight permeable membrane separation technology and metal polymer dehumidification device were used to reduce the original humidity. The instrument has two stages of adsorption, which further reduces the nitrogen d w point and greatly improves the purity.

4. Easy to operate: no need to transport cylinders, no need to transport cylinders, only need to turn on the power switch to produce nitrogen.It can be used continuously or intermittently with stable nitrogen production.

5. Safe and reliable: Equipped with safety device, automatic anti-alkali, sensitive and reliable.

6. Can be used for multi GC

 Application

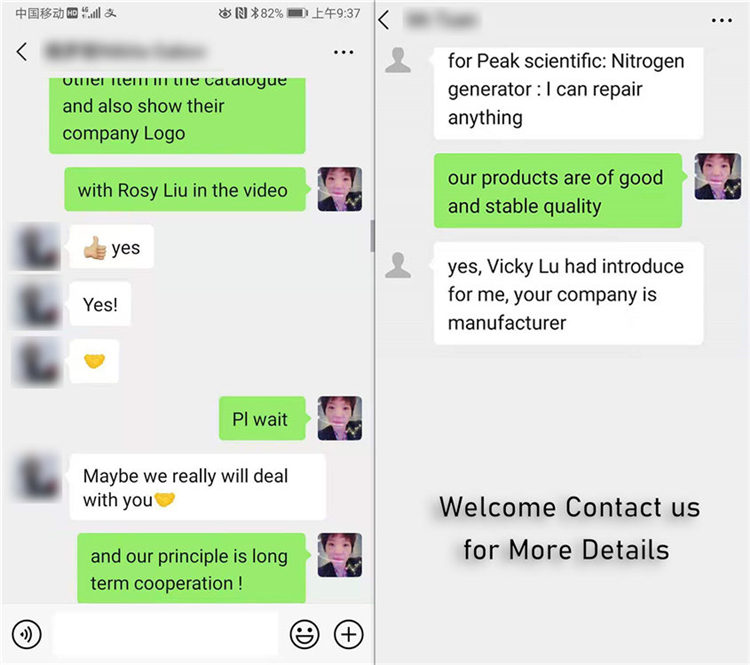

 Customer Feedback

 Company Profile

Established in 2013， Beijing Day-Pro Technology Co., Ltd.is a leading professional company in  Beijing where is full of scientific and technological talents that made our technical staff readily at hand.
Pursing high quality and excellent performance is our motto.
Our advantages are as the following:

We have very strong technical team of 150 staff.
We have our own factory to design and produce according to your requirements
We have strong team to manufacture and service.
We provide customized and complete solution
We focus on long-term business development, your business' success is our biggest success

Our mission:
Provide solutions for laboratory testing, scientific research, industrial process processing, etc.

Our values:
Innovation, Pragmatic, Integrity, Profession, Warmness, with which, we will be your reliable partner.

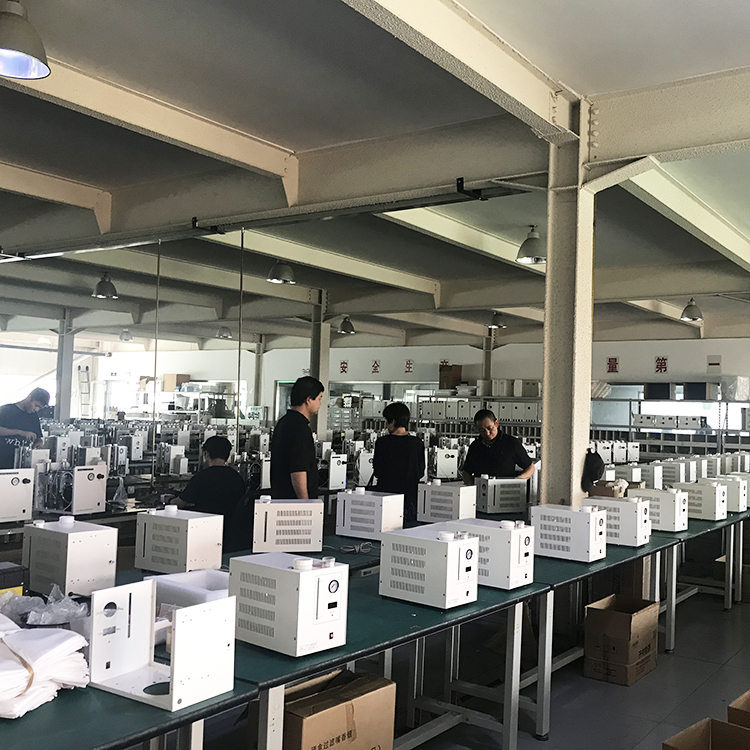

Welcome Vist our Factory

After Sale Service

 Certification

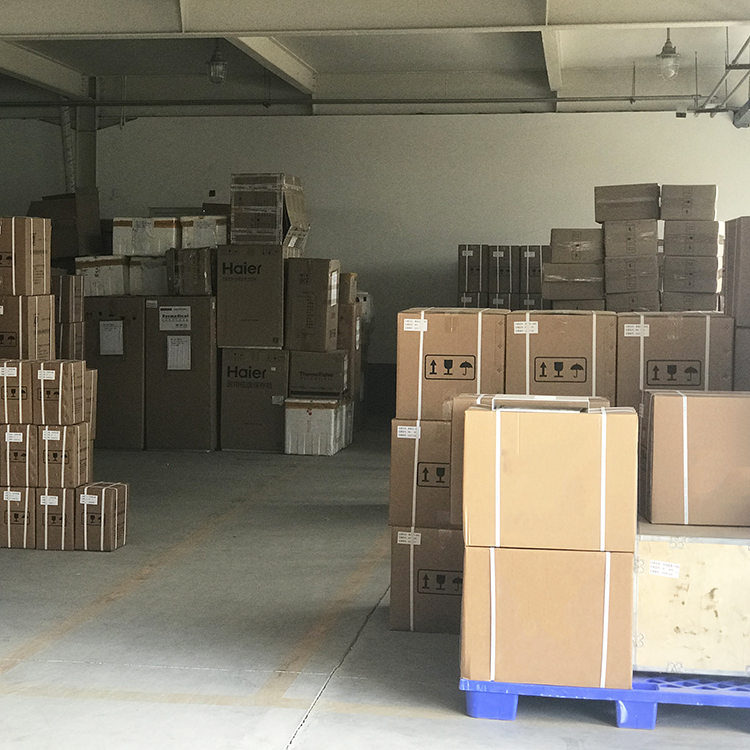

 Package
