Hydrogen Generator

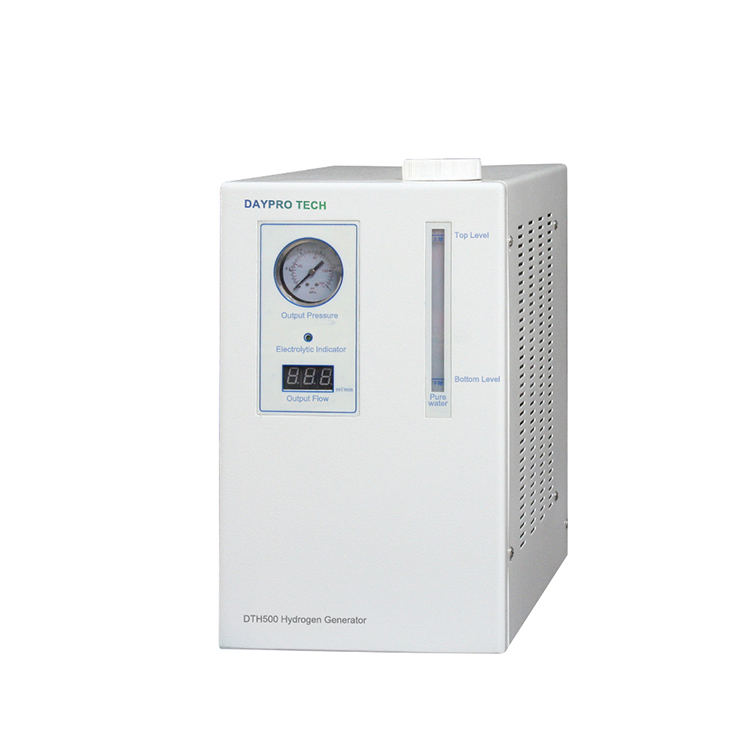

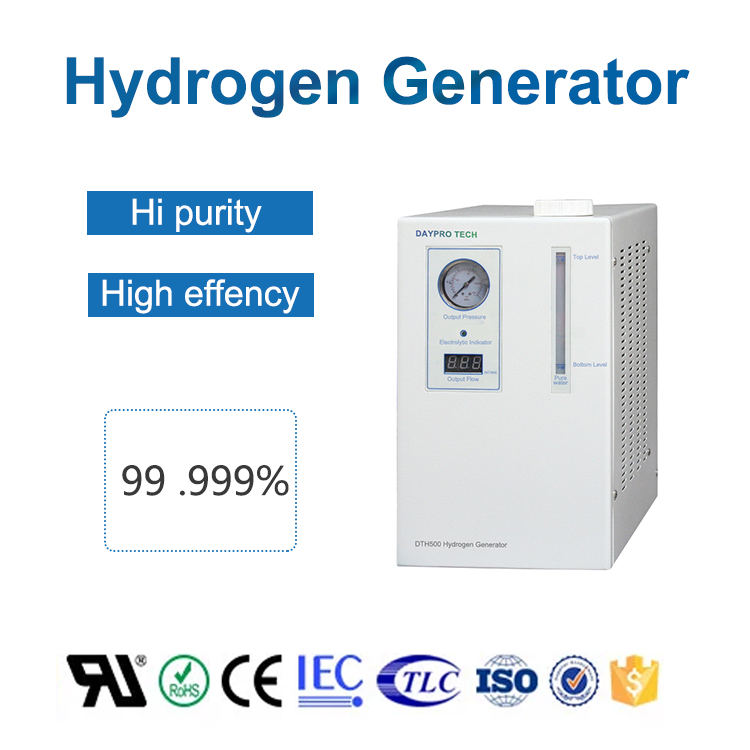

DTH500 Hydrogen Generator High Purity 99.999% Electroysis Laboratory 400*360*220mm

 Product Description

 Specification

Technical Parameter

Technical Parameter	DTH 300	DTH500	DTH1000
Hydrogen Purity	99.999%	99.999%	99.999%
Output Flow	0-300ml/min	0-500ml/min	0-1000ml/min
Output Pressure	0-0.4Mpa	0-0.4Mpa	0-0.4Mpa
Pressure Fluctuation	< 0.001MPa	< 0.001MPa	< 0.001MPa
Power Supply	220V±10%, 50Hz 110V±10%	220V±10%,  50Hz  110V±10%	220V±10%,  50Hz  110V±10%
Power Consumption	150W	250W	400W
Dimension (mm)	400*360*220	400*360*220	480×360×220
Net Weight	14kg	14kg	18kg

1-SPE solid electrolyte technology; 2-Effective protection of GC column by direct electrolysis of pure water without alkali; 3-Adopt imported high quality ionic membrane 4-Silicone rubber ring (low sulfur content) is used inside the instrument to effectively improve gas quality and ensure the chromatographic baseline is stable, suitable for NPD and FPD; 5 -Integrated pressure and flow control; 6-Automatic water level control, when the state of water shortage, automatic shutdown, effective protection of the electrolytic cell, extend the service life; 7-It can be used for any type of gas chromatograph produced by any manufacturer around the world. 8- No maintenance " 9- Water consumption is low due to recycling . 10 -Two filtering systems adopted to improve purity and protect machine . 11- Pressure fluctuation is less than 0.001Mpa which will prolong the service life as we have used extra device to control pressure .

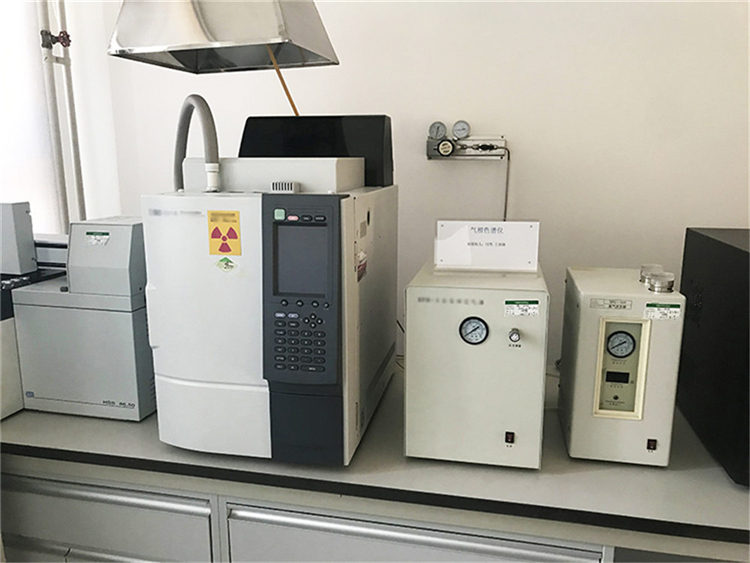

 Application

 Customer Feedback

 Company Profile

Established in 2013， Beijing Day-Pro Technology Co., Ltd.is a leading professional company in  Beijing where is full of scientific and technological talents that made our technical staff readily at hand.
Pursing high quality and excellent performance is our motto.
Our advantages are as the following:

We have very strong technical team of 150 staff.
We have our own factory to design and produce according to your requirements
We have strong team to manufacture and service.
We provide customized and complete solution
We focus on long-term business development, your business' success is our biggest success

Our mission:
Provide solutions for laboratory testing, scientific research, industrial process processing, etc.

Our values:
Innovation, Pragmatic, Integrity, Profession, Warmness, with which, we will be your reliable partner.

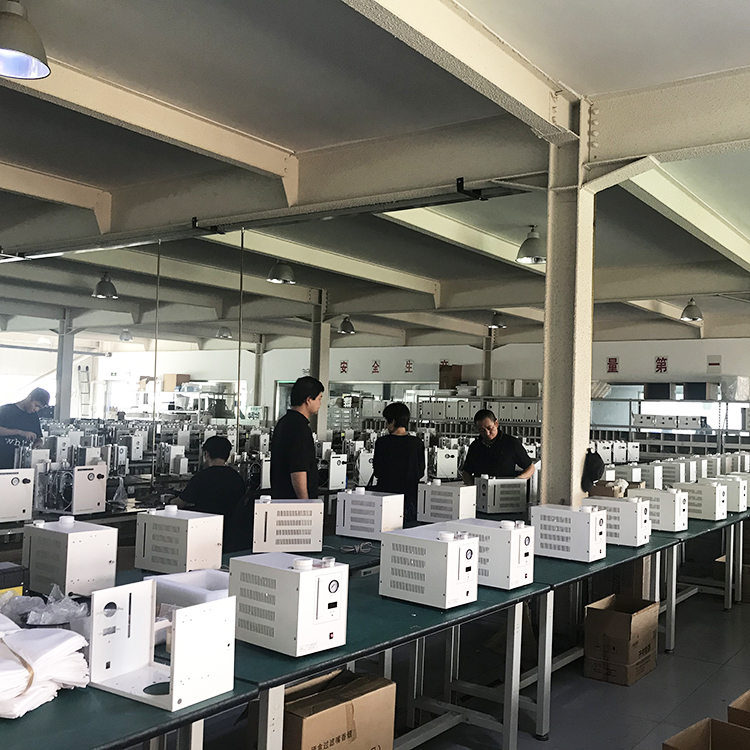

Welcome Vist our Factory

After Sale Service

 Certification

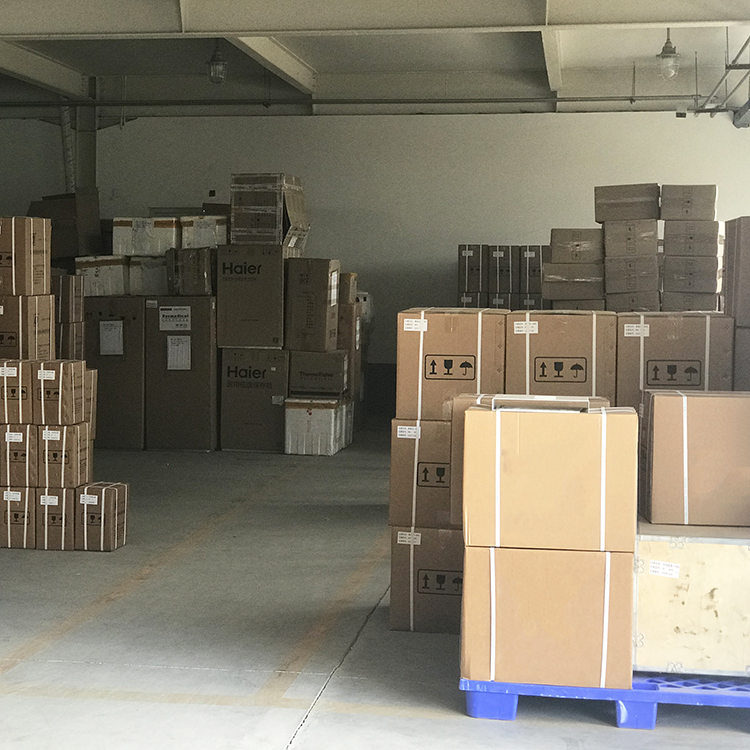

 Package

 Contact us
