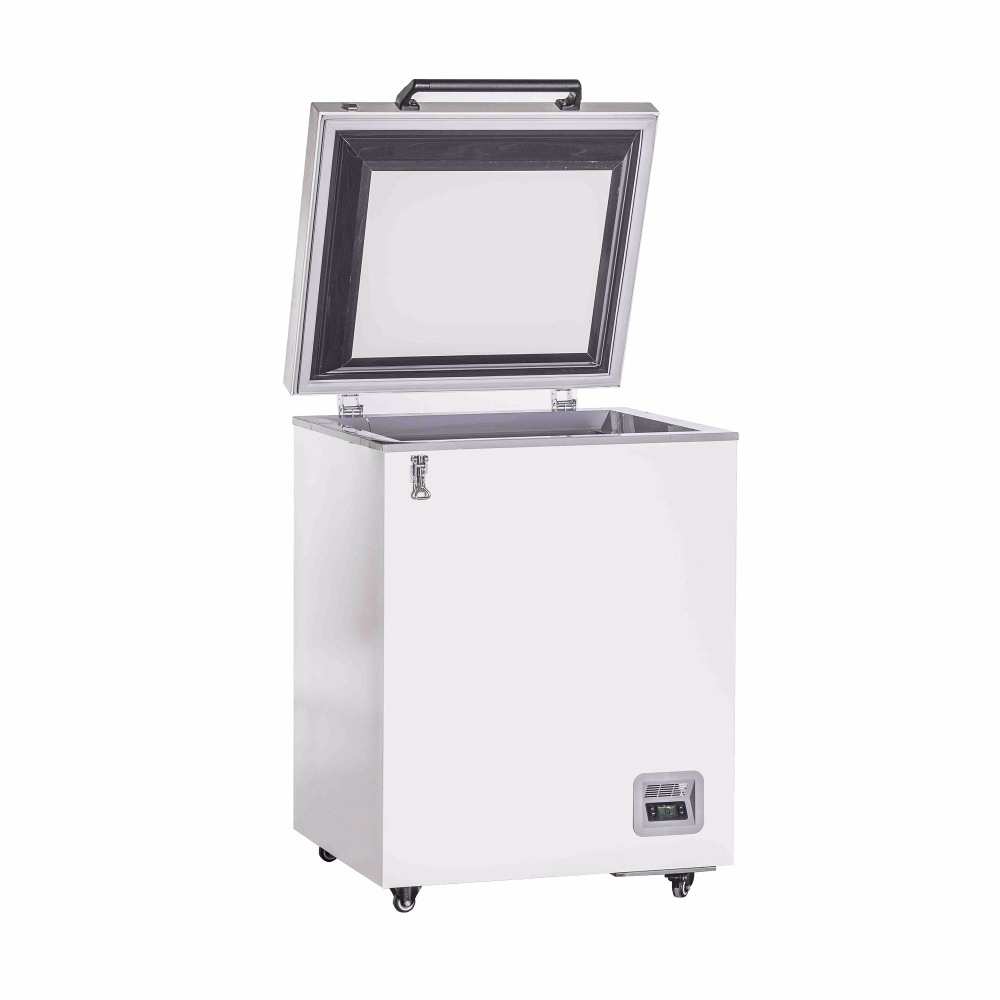

ULT Freezer-DMDF-86H105
Reliability and Key Features
Unique CH refrigeration system is optimized to provide maximum efficiency in even the most extreme ambient conditions.
Microprocessor control, digital display, adjustable temperature range: -40℃--86°C
LED digital display for clear observation
Wide rage operating voltage system from 185V to 260v designed to allow units installed in areas with poor voltage condition
Suitable for 10℃ to 32℃ambient temperature
Ergonomic Design
Door lock for storage safety.
Corrosion proof cabinet interior design
Suitable for a variety of storage baskets
Safety
Multiple malfunction alarms to detect high/low temperature, sensor error and power failure.
Two types of alarm indications: audible buzzing and visual flashing light.
| Model | MDF-86H105 | |
| Specificaitons | Shelf/drawer QTY | / |
| Cooling | Direct cooling | |
| Defrost | Manual | |
| Refrigerant | Mixed-gas | |
| Power Consumption(kWh/24h) | 3.8 | |
| Noise（db) | 50 | |
| Ambient temperature（℃） | 10~32℃ | |
| Temperature range（℃） | -40~-86℃ | |
| Cooling system | Compressor brand/QTY | CUBIGEL/1 |
| Sensor | PTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
| Power | Voltage/frequency（V/Hz) | 220/50Hz |
| Power（W) | 500W | |
| Current（A) | 2.9 | |
| Material | Inside material | Stainless steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Size | Capacity（L/cu.ft) | 105/3.70 |
| NT./GT.（kg) | 63.7/68.5 | |
| Exterior size(W*D*H)(mm) | 685*670*930 | |
| Interior size(W*D*H)(mm) | 480*380*665 | |
| Package size(W*D*H)(mm) | 750*690*1030 | |
| CBM | 0.59 | |
| 20GP/40GP/40HQ | 24/51/51 | |
| Frozen Racks | Racks | 4(11X1,6X1) |
| Boxes (2 Inches) | 34 | |
| Samples(2ml) | 3400 | |
| Alarm | High/low temperature | Y |
| Power failure | / | |
| Abnormal voltage | / | |
| Sensor error | Y | |
| Filter screen check | / | |
| Thermostat failure | Y | |
| Low battery | / | |
| Condenser clean | / | |
| High ambient temperature | / | |
| Door ajar | / | |
| Optional | Castor | Y |
| Inside door | / | |
| Test hole QTY/diameter | 1/25MM | |
| USB port | / | |
| Chart recorder | Optional | |
| Data logger | Optional | |
| Power failure backup system(alarm) | / | |
| Remote alarm port | / | |
| CO2 back up system | Optional | |
| LN2 back up system | Optional | |
| Other | Certification | ISO.CE |
